Set up SSO with OAuth2.0 and OIDC

LangSmith Self-Hosted provides SSO via OAuth2.0 and OIDC, which delegates authentication to your Identity Provider (IdP) to manage access to LangSmith. The LangSmith implementation supports any provider that is OIDC compliant. Once configured, you will see a login screen that prompts to Log in via SSO. By default, LangSmith Self-Hosted supports the Authorization Code flow with Client Secret. In this version of the flow, your client secret is stored securely in LangSmith (not on the frontend) and used for authentication and establishing auth sessions.

Considerations

You may upgrade a basic auth installation to oauth mode, but not a none auth installation.
- Upgrade a basic auth installation by removing the basic auth configuration parameters and adding the OAuth with client secret configuration parameters. Users may then log in via OAuth only. To maintain access post-upgrade, you must have access to log in via OAuth using an email address that previously logged in via basic auth.
LangSmith does not support:
- Moving from SSO to basic auth mode in self-hosted.
- Moving from OAuth Mode with client secret to OAuth mode without a client secret and vice versa.
- Having both basic auth and OAuth at the same time. Ensure you disable the basic auth configuration when enabling OAuth.

Prerequisites

You must have the following to complete the Provider setup:

Self-hosted and on an Enterprise plan.
An IdP that supports the Authorization Code flow with Client Secret.
An IdP that supports using an external discovery/issuer URL. LangSmith uses this to fetch the necessary routes and keys for your IdP.
The OIDC, email, and profile scopes. LangSmith uses these to fetch the necessary user information and email for your users.

LangSmith SSO is only supported over https.

Configuration

You will need to set the callback URL in your IdP to https://<host>/api/v1/oauth/custom-oidc/callback, where host is the domain or IP you have provisioned for your LangSmith instance. This is where your IdP will redirect the user after they have authenticated.
To terminate the IdP session on logout (so users must re-authenticate), register your LangSmith URL (e.g., https://<host>) as a post-logout redirect URI (sometimes called “Sign-out redirect URI”) in your IdP, then set OAUTH_IDP_LOGOUT_ENABLED=true in your environment via commonEnv in Helm.
You will need to provide the oauthClientId, oauthClientSecret, hostname, and oauthIssuerUrl in your values.yaml file. This is where you will configure your LangSmith instance.
If you have not already configured OAuth with client secret or if you only have personal orgs, you must provide an email address to assign as the initialOrgAdminEmail for the newly provisioned SSO org. If you are upgrading from basic auth, LangSmith will reuse your existing org instead.

Helm

config:
  authType: mixed
  hostname: https://langsmith.example.com
  initialOrgAdminEmail: test@email.com # Set this if required
  oauth:
    enabled: true
    oauthClientId: <YOUR CLIENT ID>
    oauthClientSecret: <YOUR CLIENT SECRET>
    oauthIssuerUrl: <YOUR DISCOVERY URL>
    oauthScopes: "email,profile,openid"

Provider setup

Microsoft Entra ID IdP setup

Configure Microsoft Entra ID as a single sign-on provider using OAuth2.0 and OIDC. For additional information, refer to Microsoft’s OpenID Connect documentation.

Registering the application in Microsoft Entra ID requires the Application Administrator or Cloud Application Administrator role, or higher, in your tenant.

Step 1. Register the application

In the Microsoft Entra admin center, go to Applications > App registrations > New registration.
Set Name to a value that identifies the application, for example, LangSmith Self-Hosted.
Set Supported account types to Accounts in this organizational directory only (Single tenant).
Under Redirect URI, select Web as the platform and enter https://<host>/api/v1/oauth/custom-oidc/callback, where <host> is the domain of your LangSmith instance.
Click Register.

From the app’s Overview page, record the following values for use in Helm configuration:

Application (client) ID: used as oauthClientId.
Directory (tenant) ID: used to construct the issuer URL.
OIDC issuer URL: https://login.microsoftonline.com/<tenant-id>/v2.0, used as oauthIssuerUrl.

Step 2. Create a client secret

In the app registration, go to Certificates & secrets > Client secrets > New client secret.
Enter a description, choose an expiration, then click Add.
Copy the secret Value immediately. Microsoft Entra ID hides this value after you leave the page. Use it as oauthClientSecret.

Store the Client ID, Client Secret, and Issuer URL in your secret store before configuring Helm.

Step 3. Add the email optional claim

Without this step, LangSmith blocks login with the error Your identity provider did not provide an email address.

In the app registration, go to Token configuration > Add optional claim.
Select ID as the token type.
Check email, then click Add.
When prompted, accept the request to grant the Microsoft Graph email permission.

Step 4. Configure LangSmith

Apply the values from the previous steps to your Helm configuration:

Helm

config:
  authType: mixed
  hostname: https://langsmith.example.com
  initialOrgAdminEmail: test@email.com # Set this if required
  oauth:
    enabled: true
    oauthClientId: "<APPLICATION (CLIENT) ID>"
    oauthClientSecret: "<CLIENT SECRET VALUE>"
    oauthIssuerUrl: "https://login.microsoftonline.com/<TENANT ID>/v2.0"
    oauthScopes: "email,profile,openid"

For details about initialOrgAdminEmail, refer to the general configuration section.

Microsoft Entra ID’s oid claim is used as the OIDC sub claim by default. For details, refer to Override sub claim.

To assign org and workspace roles from Microsoft Entra ID groups on login, refer to SSO Groups Sync.

Google workspace IdP setup

You can use Google Workspace as a single sign-on (SSO) provider using OAuth2.0 and OIDC without PKCE.

You must have administrator-level access to your organization’s Google Cloud Platform (GCP) account to create a new project, or permissions to create and configure OAuth 2.0 credentials for an existing project. We recommend that you create a new project for managing access, since each GCP project has a single OAuth consent screen.

Create a new GCP project, see the Google documentation topic creating and managing projects
After you have created the project, open the Credentials page in the Google API Console (making sure the project in the top left corner is correct)
Create new credentials: Create Credentials → OAuth client ID
Choose Web application as the Application type and enter a name for the application e.g. LangSmith
In Authorized Javascript origins put the domain of your LangSmith instance e.g. https://langsmith.yourdomain.com
In Authorized redirect URIs put the domain of your LangSmith instance followed by /api/v1/oauth/custom-oidc/callback e.g. https://langsmith.yourdomain.com/api/v1/oauth/custom-oidc/callback
Click Create, then download the JSON or copy and save the Client ID (ends with .apps.googleusercontent.com) and Client secret somewhere secure. You will be able to access these later if needed.
Select OAuth consent screen from the navigation menu on the left
1. Choose the Application type as Internal. If you select Public, anyone with a Google account can sign in.
2. Enter a descriptive Application name. This name is shown to users on the consent screen when they sign in. For example, use LangSmith or <organization_name> SSO for LangSmith.
3. Verify that the Scopes for Google APIs only lists email, profile, and openid scopes. Only these scopes are required for single sign-on. If you grant additional scopes it increases the risk of exposing sensitive data.
(Optional) control who within your organization has access to LangSmith: https://admin.google.com/ac/owl/list?tab=configuredApps. See Google’s documentation for additional details.
Configure LangSmith to use this OAuth application. For examples, here are the configvalues that would be used for Kubernetes configuration:
1. oauthClientId: Client ID (ends with .apps.googleusercontent.com)
2. oauthClientSecret: Client secret
3. hostname: the domain of your LangSmith instance e.g. https://langsmith.yourdomain.com (no trailing slash)
4. oauthIssuerUrl: https://accounts.google.com
5. oauth.enabled: true
6. authType: mixed

Okta IdP setup

Supported features

IdP-initiated SSO
SP-initiated SSO
Just-In-Time provisioning (see Manage user access in SSO organizations)

Configuration steps

For additional information, see Okta’s documentation. If you have any questions or issues, please contact support via support.langchain.com.

Via Okta Integration Network (recommended)

For details on SCIM setup, refer to Set up SCIM for your organization.

This method of configuration is required in order to use SCIM with Okta.

Sign in to Okta.
In the upper-right corner, select Admin. The button is not visible from the Admin area.
Select Browse App Integration Catalog.
Find and select the LangSmith application.
On the application overview page, select Add Integration.
Fill in ApiUrlBase:
- Your LangSmith API URL without the protocol (https://) formatted as <langsmith_domain>/api/v1, e.g., langsmith.yourdomain.com/api/v1.
- If your installation is configured with a subdomain / path prefix, include that in the URL, e.g., langsmith.yourdomain.com/prefix/api/v1.
Leave AuthHost empty.
(Optional, if planning to use SCIM as well) Fill in LangSmithUrl: The <langsmith_url> portion from above, e.g., langsmith.yourdomain.com.
Under Application Visibility, keep the box unchecked.
Select Next.
Select OpenID Connect.
Fill in Sign-On Options:
- Application username format: Email.
- Update application username on: Create and update.
- Allow users to securely see their password: leave unchecked.
Click Save.
Configure LangSmith to use this OAuth application (see general configuration section for details about initialOrgAdminEmail):

Helm

config:
  authType: mixed
  hostname: https://langsmith.example.com # the domain of your instance (note no trailing slash)
  initialOrgAdminEmail: test@email.com # Set this if required
  oauth:
    enabled: true
    oauthClientId: "Client ID" # (starts with `0o`)
    oauthClientSecret: "Client secret"
    oauthIssuerUrl: "https://company-7422949.okta.com" # the URL of your Okta instance
    oauthScopes: "email,profile,openid"

For details on SCIM setup, refer to Set up SCIM for your organization.

Via Custom App Integration

SCIM is not compatible with this method of configuration. Refer to Via Okta Integration Network.

Log in to Okta as an administrator, and go to the Okta Admin console.
Under Applications > Applications click Create App Integration.
Select OIDC - OpenID Connect as the Sign-in method and Web Application as the Application type, then click Next.
Enter an App integration name (e.g., LangSmith).
Recommended: Check Core grants > Refresh Token (see session length controls).
In Sign-in redirect URIs put the domain of your LangSmith instance followed by /api/v1/oauth/custom-oidc/callback, e.g., https://langsmith.yourdomain.com/api/v1/oauth/custom-oidc/callback. If your installation is configured with a subdomain / path prefix, include that in the URL, e.g., https://langsmith.yourdomain.com/prefix/api/v1/oauth/custom-oidc/callback.
Under Sign-out redirect URIs, set the value to your LangSmith URL, e.g., https://langsmith.yourdomain.com. This ensures the IdP session is terminated when users log out of LangSmith.
Under Trusted Origins > Base URIs add your langsmith URL with the protocol, e.g., https://langsmith.yourdomain.com.
Select your desired option under Assignments > Controlled access:
- Allow everyone in your organization to access.
- Limit access to selected groups.
- Skip group assignment for now.
Click Save.
Under Sign On > OpenID Connect ID Token set Issuer to Okta URL.
(Optional) Under General > Login set Login initiated by to Either Okta or App to enable IdP-initiated login.
(Recommended) Under General > Login > Email verification experience fill in the Callback URI with the LangSmith URL, e.g., https://langsmith.yourdomain.com.
Configure LangSmith to use this OAuth application (see general configuration section for details about initialOrgAdminEmail):

Helm

config:
  authType: mixed
  hostname: https://langsmith.example.com # the domain of your instance (note no trailing slash)
  initialOrgAdminEmail: test@email.com # Set this if required
  oauth:
    enabled: true
    oauthClientId: "Client ID" # (starts with `0o`)
    oauthClientSecret: "Client secret"
    oauthIssuerUrl: "https://company-7422949.okta.com" # the URL of your Okta instance
    oauthScopes: "email,profile,openid"

SP-initiated SSO

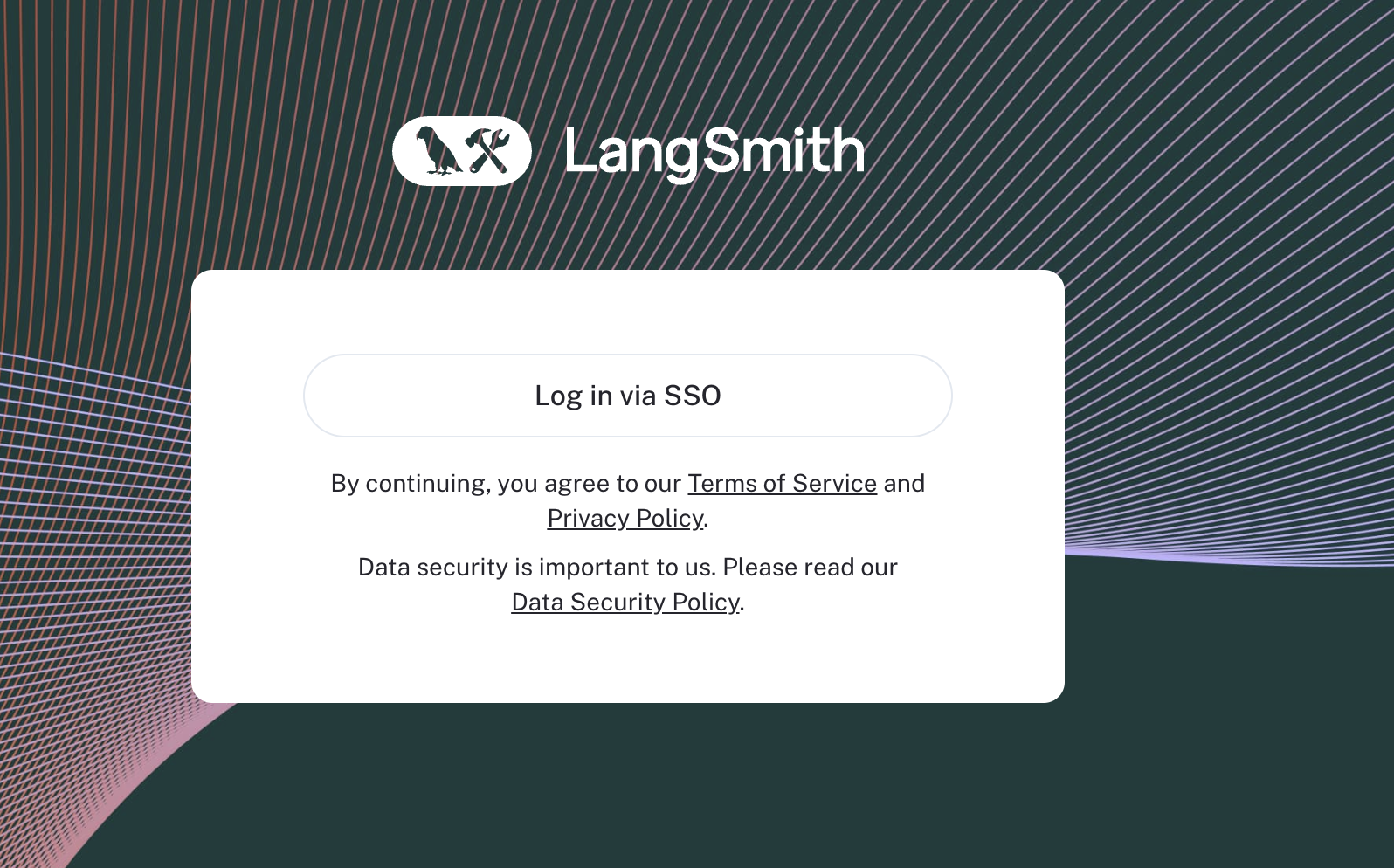

Users can sign in using the Login via SSO button on the LangSmith homepage.

Advanced options

Session length controls

All of the environment variables in this section are for the platform-backend service and can be added using platformBackend.deployment.extraEnv in Helm.

By default, session length is controlled by the expiration of the identity token returned by the identity provider
Most setups should use refresh tokens to enable session length extension beyond the identity token expiration up to OAUTH_SESSION_MAX_SEC, which may require including the offline_access scope by adding to oauthScopes in Helm
OAUTH_SESSION_MAX_SEC (default 1 day) can be overridden to a maximum of one week (604800)
For identity provider setups that don’t support refresh tokens, setting OAUTH_OVERRIDE_TOKEN_EXPIRY="true" will take OAUTH_SESSION_MAX_SEC as the session length, ignoring the identity token expiration

Scope encoding for strict identity providers

By default, LangSmith encodes the spaces between oauthScopes in the authorization request as + (the application/x-www-form-urlencoded convention). Most identity providers accept this, but some (for example, CA SiteMinder) do not decode + as a space and reject the login with an invalid_scope error. If your IdP rejects multi-scope logins for this reason, set urlEncodeScopeSpaces: true in Helm to encode the spaces as %20 instead, which is the encoding accepted by all OIDC-compliant providers. This applies only to authType: mixed with an OAuth client secret, and defaults to off.

Helm

config:
  authType: mixed
  hostname: https://langsmith.example.com
  oauth:
    enabled: true
    oauthClientId: <YOUR CLIENT ID>
    oauthClientSecret: <YOUR CLIENT SECRET>
    oauthIssuerUrl: <YOUR DISCOVERY URL>
    oauthScopes: "email,profile,openid"
    urlEncodeScopeSpaces: true

Override sub claim

In some scenarios, it may be necessary to override which claim is used as the sub claim from your identity provider. For example, in SCIM, the resolved sub claim and SCIM externalId must match in order for login to succeed. If there are restrictions on the source attribute of the sub claim and/or the SCIM externalId, set the ISSUER_SUB_CLAIM_OVERRIDES environment variable to select which OIDC JWT claim is used as the sub. If an issuer URL starts with one of the URLs in this configuration, the sub claim is taken from the field name specified. For example, with the following configuration, a token with the issuer https://idp.yourdomain.com/application/uuid would use the customClaim value as the sub:

ISSUER_SUB_CLAIM_OVERRIDES='{"https://idp.yourdomain.com": "customClaim"}'

If unset, the default value for this configuration uses the oid claim when Azure Entra ID is used as the identity provider:

ISSUER_SUB_CLAIM_OVERRIDES='{"https://login.microsoftonline.com/": "oid", "https://sts.windows.net/": "oid", "https://login.microsoftonline.us/": "oid", "https://login.partner.microsoftonline.cn/": "oid"}'

SSO Groups Sync

SSO Groups Sync on self-hosted requires LangSmith chart version 0.15.0-rc.3 (application version 0.15.2rc1) or later.

SSO Groups Sync lets LangSmith assign org and workspace roles from a group membership claim on the OIDC token, as a simpler alternative to SCIM. On self-hosted, you must configure the IdP to include groups in the OIDC ID token before LangSmith can read them. IdP-side configuration (varies by provider):

Configure your IdP application to emit a group membership claim in the OIDC ID token. The source attribute and the resulting claim name vary by IdP. Common examples include groups, roles, or a custom claim name. LangSmith does not dictate the source attribute.
Depending on your IdP, you may need to add an additional scope (commonly groups) to oauthScopes to receive the claim. Check your IdP’s documentation for the required scope and any additional configuration needed to include group memberships in the token.
Group names must follow the SCIM naming convention (e.g., LS:Organization Admin, LS:Organization User:prod:Editor). The separator is shared with SCIM via scim_group_name_separator.

Helm configuration: If your IdP requires an additional OIDC scope to include groups in the token (commonly groups), add it to oauthScopes:

Helm

config:
  authType: mixed
  hostname: https://langsmith.example.com
  oauth:
    enabled: true
    oauthClientId: <YOUR CLIENT ID>
    oauthClientSecret: <YOUR CLIENT SECRET>
    oauthIssuerUrl: <YOUR DISCOVERY URL>
    oauthScopes: "email,profile,openid,groups"

The exact scope name (groups, roles, etc.) depends on your IdP. Check your IdP’s OIDC documentation. LangSmith-side configuration: Per-provider SSO Groups Sync settings are stored on the SSO provider record and toggled via the LangSmith UI or API (not via Helm values).

Once your IdP emits the groups claim, configure SSO Groups Sync from the UI in Settings → Members and roles → SSO Configuration → SSO Groups Sync. The claim name configured in the Groups claim field must match the claim emitted by your IdP.

To configure SSO Groups Sync via the API, first GET the current SSO settings to retrieve the provider id, then PATCH using that id:

# 1. Fetch the current SSO settings (and the id required for PATCH)
curl -s "$SELF_HOSTED_LANGSMITH_ENDPOINT/api/v1/orgs/current/sso-settings" \
  -H "X-Api-Key: $LANGSMITH_API_KEY" | jq .

# 2. PATCH using the id returned above
curl -s -X PATCH "$SELF_HOSTED_LANGSMITH_ENDPOINT/api/v1/orgs/current/sso-settings/<id>" \
  -H "X-Api-Key: $LANGSMITH_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "sso_groups_enabled": true,
    "sso_groups_claim_field": "groups",
    "sso_groups_required": true,
    "sso_groups_role_sync_enabled": true
  }' | jq .

DELETE is also available on this resource but is not covered here. DELETE removes the SSO provider entirely and locks out login if the org has Login via SSO only enabled, or if no other authentication providers (for example, social login) are configured.

Emit the groups claim from Microsoft Entra ID

For OIDC on self-hosted, add the groups claim through the App Registration Manifest. Skip the Token configuration > Add groups claim flow, which does not support display names for cloud-only security groups.

Set the top-level groupMembershipClaims property to "ApplicationGroup". Other values change behavior in ways that are hard to diagnose:

Missing or "None": no groups appear in the token.
"SecurityGroup" or "All": groups appear, but the cloud_displayname value is silently ignored and the token contains group object IDs instead of names.
"ApplicationGroup": groups resolve to display names, but only for groups explicitly assigned to the Enterprise Application under Users and groups.

The cloud_displayname value is only supported for single-tenant applications.

In App registrations > your app > Manifest, merge the following into the manifest, keeping any existing optionalClaims.idToken entries such as email:

"groupMembershipClaims": "ApplicationGroup",
"optionalClaims": {
  "idToken": [
    {
      "name": "email",
      "source": null,
      "essential": false,
      "additionalProperties": []
    },
    {
      "name": "groups",
      "source": null,
      "essential": false,
      "additionalProperties": ["cloud_displayname"]
    }
  ],
  "accessToken": [],
  "saml2Token": []
}

Then, in Enterprise applications > your app > Users and groups, assign every group that maps to a LangSmith role. Groups that are not assigned to the Enterprise Application do not appear in the token.

Create Microsoft Entra ID groups for SSO Groups Sync

Groups used for SSO Groups Sync must follow the group naming convention documented on the main user management page (for example, LS:Organization Admins, LS:Organization User:Production:Editor). Group names are case-sensitive and must match the convention exactly. To create a group in Microsoft Entra ID:

In the Microsoft Entra admin center, go to Groups > New group.
Set Group type to Security.
Set Membership type to Assigned (dynamic membership is not supported).
Set Group name to a value that matches the naming convention.
Add members, then click Create.

Group membership changes take effect on each user’s next login.

Verify the groups claim in the token

After completing IdP-side configuration, verify that the OIDC ID token contains the expected groups claim:

Sign out of LangSmith, then sign back in via SSO.
In your browser’s developer tools, go to Application > Cookies and locate the OAuth session cookie.
Decode the ID token with a JWT decoder (for example, jwt.io) and confirm the groups claim contains display names, not object IDs:

{
  "groups": [
    "LS:Organization Admins",
    "LS:Organization User:Production:Editor"
  ]
}

If the claim contains UUIDs instead of names, revisit the groupMembershipClaims value in the manifest and confirm the groups are assigned to the Enterprise Application under Users and groups.

PKCE flow (deprecated)

We recommend running with a Client Secret. However, if your IdP does not support this, you can use the Authorization Code with PKCE flow.

The PKCE workflow is deprecated and will be removed in a future release of LangSmith Self-hosted.

Requirements

This flow does not require a Client Secret.

There are a couple of requirements for using OAuth SSO with LangSmith:

Your IdP must support the Authorization Code with PKCE flow (Google does not support this flow for example, but see above for an alternative configuration that Google supports). This is often displayed in your OAuth Provider as configuring a “Single Page Application (SPA)”
Your IdP must support using an external discovery/issuer URL. We will use this to fetch the necessary routes and keys for your IdP.
You must provide the OIDC, email, and profile scopes to LangSmith. We use these to fetch the necessary user information and email for your users.
You will need to set the callback URL in your IdP to http://<host>/oauth-callback, where host is the domain or IP you have provisioned for your LangSmith instance. This is where your IdP will redirect the user after they have authenticated.
You will need to provide the oauthClientId and oauthIssuerUrl in your values.yaml file. This is where you will configure your LangSmith instance.

Helm

config:
  oauth:
    enabled: true
    oauthClientId: <YOUR CLIENT ID>
    oauthIssuerUrl: <YOUR DISCOVERY URL>

Connect these docs to Claude, VSCode, and more via MCP for real-time answers.

Edit this page on GitHub or file an issue.

​Considerations

​Prerequisites

​Configuration

​Provider setup

​Microsoft Entra ID IdP setup

​Step 1. Register the application

​Step 2. Create a client secret

​Step 3. Add the email optional claim

​Step 4. Configure LangSmith

​Google workspace IdP setup

​Okta IdP setup

​Supported features

​Configuration steps

​SP-initiated SSO

​Advanced options

​Session length controls

​Scope encoding for strict identity providers

​Override sub claim

​SSO Groups Sync

​Emit the groups claim from Microsoft Entra ID

​Create Microsoft Entra ID groups for SSO Groups Sync

​Verify the groups claim in the token

​PKCE flow (deprecated)

​Requirements

Considerations

Prerequisites

Configuration

Provider setup

Microsoft Entra ID IdP setup

Step 1. Register the application

Step 2. Create a client secret

Step 3. Add the email optional claim

Step 4. Configure LangSmith

Google workspace IdP setup

Okta IdP setup

Supported features

Configuration steps

SP-initiated SSO

Advanced options

Session length controls

Scope encoding for strict identity providers

Override sub claim

SSO Groups Sync

Emit the groups claim from Microsoft Entra ID

Create Microsoft Entra ID groups for SSO Groups Sync

Verify the groups claim in the token

PKCE flow (deprecated)

Requirements
