Many LLM applications have a chatbot-like interface in which the user and the LLM application engage in a multi-turn conversation. In order to track these conversations, you can use the Threads feature in LangSmith.

Group traces into threads

A Thread is a sequence of traces representing a single conversation. Each response is represented as its own trace, but these traces are linked together by being part of the same thread. To associate traces together, you need to pass in a special metadata key where the value is the unique identifier for that thread. The key name should be one of:
  • session_id
  • thread_id
  • conversation_id.
The value can be any string you want, but we recommend using UUIDs, such as f47ac10b-58cc-4372-a567-0e02b2c3d479. Check out this guide for instructions on adding metadata to your traces.

Example

This example demonstrates how to log and retrieve conversation history using a structured message format to maintain long-running chats.
import os
from typing import List, Dict, Any, Optional

import openai
from langsmith import traceable, Client
import langsmith as ls
from langsmith.wrappers import wrap_openai

# Initialize clients
client = wrap_openai(openai.Client())
langsmith_client = Client()

# Configuration
LANGSMITH_PROJECT = "project-with-threads"
THREAD_ID = "thread-id-1"
langsmith_extra={"project_name": LANGSMITH_PROJECT, "metadata":{"session_id": THREAD_ID}}

# gets a history of all LLM calls in the thread to construct conversation history
def get_thread_history(thread_id: str, project_name: str):
    # Filter runs by the specific thread and project
    filter_string = f'and(in(metadata_key, ["session_id","conversation_id","thread_id"]), eq(metadata_value, "{thread_id}"))'
    # Only grab the LLM runs
    runs = [r for r in langsmith_client.list_runs(project_name=project_name, filter=filter_string, run_type="llm")]

    # Sort by start time to get the most recent interaction
    runs = sorted(runs, key=lambda run: run.start_time, reverse=True)

    # Reconstruct the conversation state
    latest_run = runs[0]
    return latest_run.inputs['messages'] + [latest_run.outputs['choices'][0]['message']]


@traceable(name="Chat Bot")
def chat_pipeline(messages: list, get_chat_history: bool = False):
    # Whether to continue an existing thread or start a new one
    if get_chat_history:
        run_tree = ls.get_current_run_tree()
        # Get existing conversation history and append new messages
        history_messages = get_thread_history(run_tree.extra["metadata"]["session_id"], run_tree.session_name)
        all_messages = history_messages + messages
        # Include the complete conversation in the input for tracing
        input_messages = all_messages
    else:
        all_messages = messages
        input_messages = messages

    # Invoke the model
    chat_completion = client.chat.completions.create(
        model="gpt-4o-mini", messages=all_messages
    )

    # Return the complete conversation including input and response
    response_message = chat_completion.choices[0].message
    return {
        "messages": input_messages + [response_message]
    }

# Format message
messages = [
    {
        "content": "Hi, my name is Sally",
        "role": "user"
    }
]
get_chat_history = False

# Call the chat pipeline
result = chat_pipeline(messages, get_chat_history, langsmith_extra=langsmith_extra)
After waiting a few seconds, you can make the following calls to continue the conversation. By passing get_chat_history=True,/getChatHistory: true, you can continue the conversation from where it left off. This means that the LLM will receive the entire message history and respond to it, instead of just responding to the latest message.
# Continue the conversation.
messages = [
    {
        "content": "What is my name?",
        "role": "user"
    }
]
get_chat_history = True

chat_pipeline(messages, get_chat_history, langsmith_extra=langsmith_extra)
Keep the conversation going. Since past messages are included, the LLM will remember the conversation.
# Continue the conversation.
messages = [
    {
        "content": "What was the first message I sent you?",
        "role": "user"
    }
]
get_chat_history = True

chat_pipeline(messages, get_chat_history, langsmith_extra=langsmith_extra)

View threads

You can view threads by clicking on the Threads tab in any project details page. You will then see a list of all threads, sorted by the most recent activity.

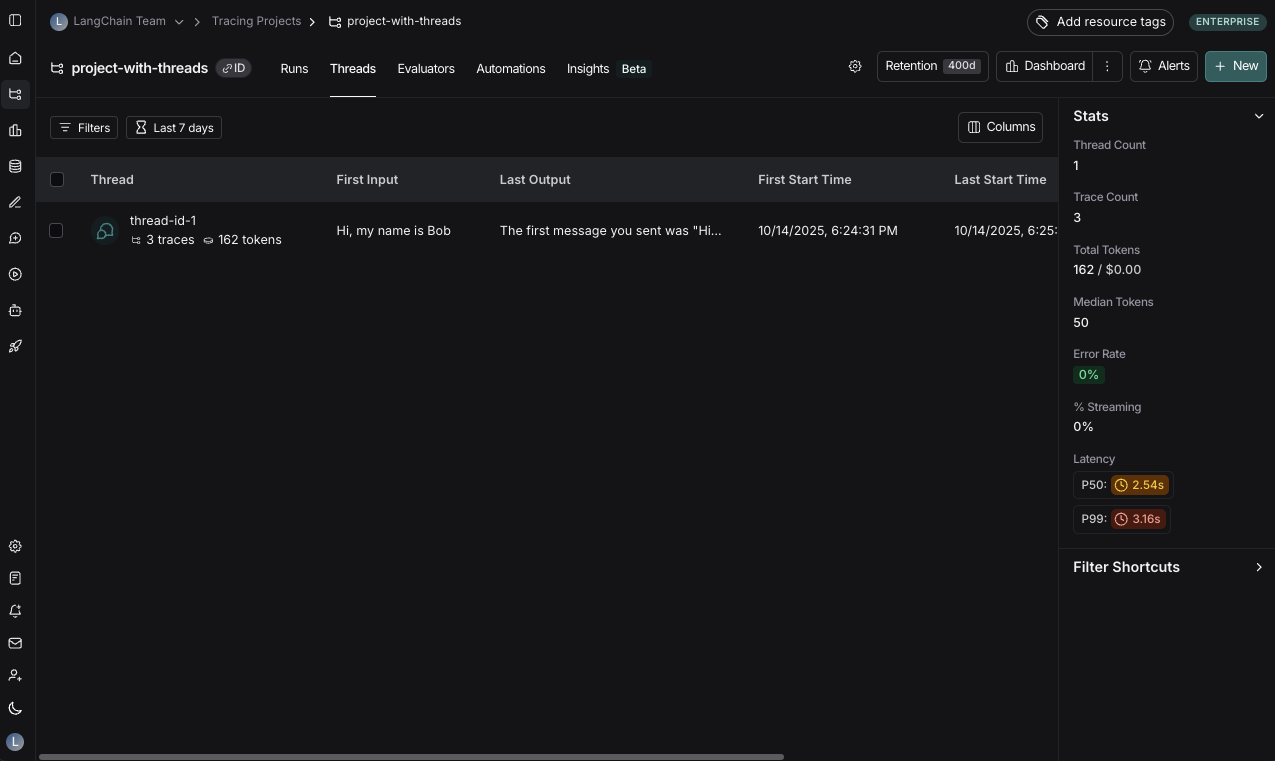

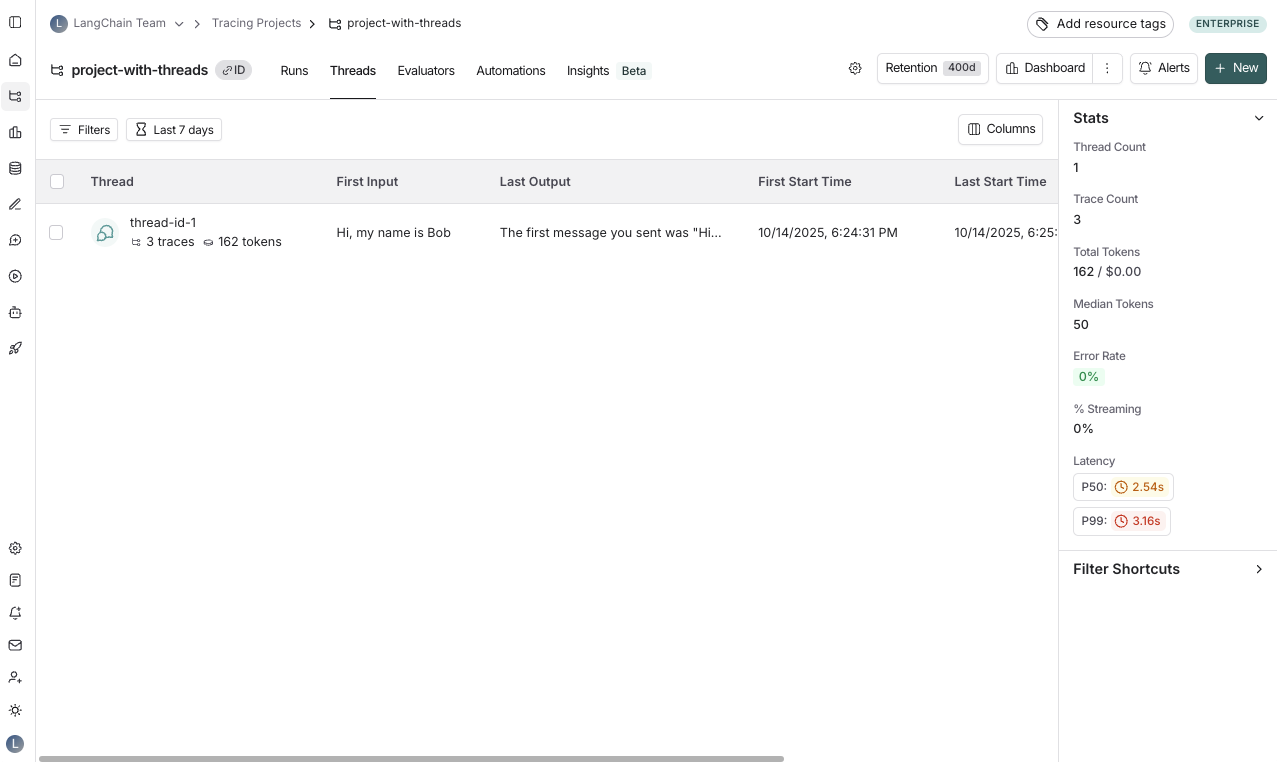

LangSmith UI showing the threads table.

View a thread

You can then click into a particular thread. This will open the history for a particular thread.

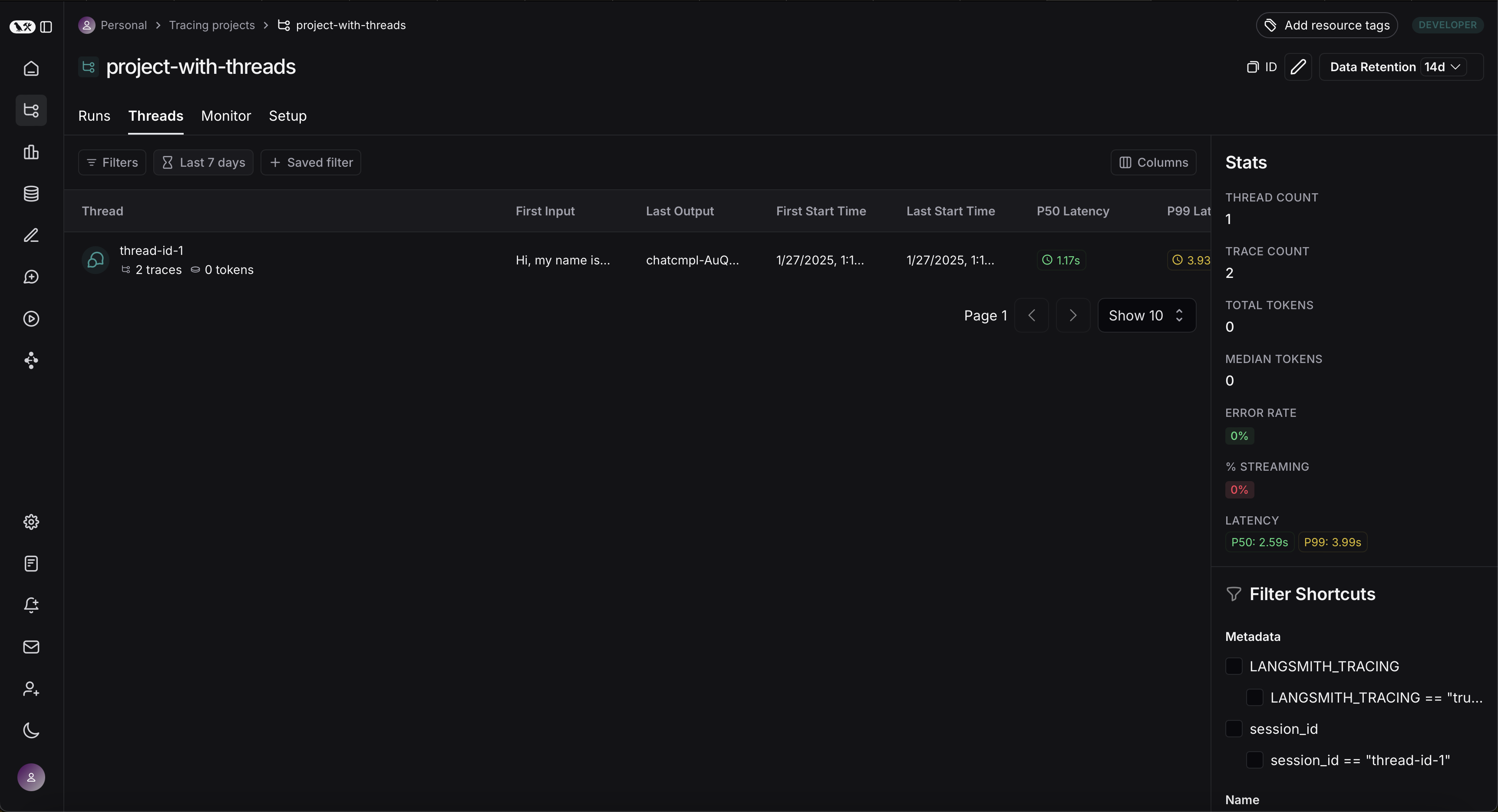

LangSmith UI showing the threads table.
Threads can be viewed in two different ways: You can use the buttons at the top of the page to switch between the two views or use the keyboard shortcut T to toggle between the two views.

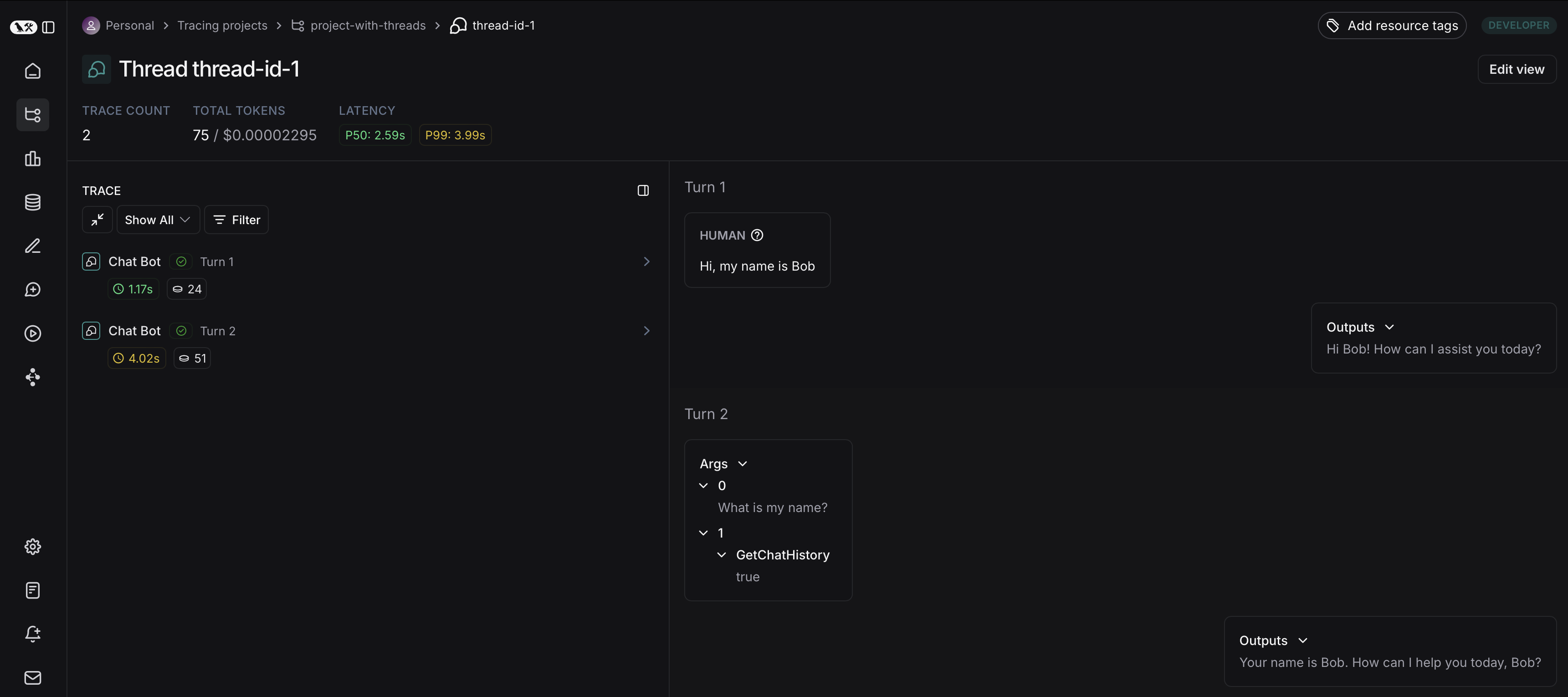

Thread overview

The thread overview page shows you a chatbot-like UI where you can see the inputs and outputs for each turn of the conversation. You can configure which fields in the inputs and outputs are displayed in the overview, or show multiple fields by clicking the Configure button. The JSON path for the inputs and outputs supports negative indexing, so you can use -1 to access the last element of an array. For example, inputs.messages[-1].content will access the last message in the messages array.

Trace view

The trace view here is similar to the trace view when looking at a single run, except that you have easy access to all the runs for each turn in the thread.

View feedback

When viewing a thread, across the top of the page you will see a section called Feedback. This is where you can see the feedback for each of the runs that make up the thread. This feedback is aggregated, so if you evaluate each run of a thread for the same criteria, you will see the average score across all the runs displayed. You can also see thread level feedback left here.

Save thread level filter

Similar to saving filters at the project level, you can also save commonly used filters at the thread level. To save filters on the threads table, set a filter using the filters button and then click the Save filter button. You can open up the trace or annotate the trace in a side panel by clicking on Annotate and Open trace, respectively.
