Tracing quickstart

LangSmith gives you end-to-end visibility into your agent by capturing traces; a complete record of every step that ran during a request, from the inputs passed in to the final output returned. In this quickstart, you will add tracing to an AI assistant and view the results in LangSmith. Traces belong to an agent and one of its environments within a workspace. This quickstart creates the agent in LangSmith, then configures your code to send traces to its identifier and environment. Compatibility instructions cover older workspaces and self-hosted LangSmith.

If you’re building with LangChain or LangGraph, you can enable LangSmith tracing with a single environment variable. Refer to trace with LangChain or trace with LangGraph.

Prerequisites

Before you begin, make sure you have:

A LangSmith account: Sign up or log in at smith.langchain.com.
A LangSmith API key: Follow the Create an API key guide.
A model provider API key: Generate one from the OpenAI dashboard, the Claude Console, or Google AI Studio for Gemini.

Select your provider in the tabs on each step. The Anthropic and Gemini examples are in Python and TypeScript only, because the LangSmith Java SDK wraps only the OpenAI client.

1. Set up your environment

Create a directory for your agent code, install the dependencies, and configure the required environment variables:

OpenAI
Anthropic
Gemini

mkdir ls-quickstart && cd ls-quickstart
python -m venv .venv && source .venv/bin/activate
pip install -U langsmith openai

mkdir ls-quickstart-ts && cd ls-quickstart-ts
npm init -y
npm install langsmith openai
npm install -D typescript tsx

implementation("com.langchain.smith:langsmith-java:0.1.0-beta.27")

mkdir ls-quickstart && cd ls-quickstart
python -m venv .venv && source .venv/bin/activate
pip install -U langsmith anthropic

mkdir ls-quickstart-ts && cd ls-quickstart-ts
npm init -y
npm install langsmith @anthropic-ai/sdk
npm install -D typescript tsx

mkdir ls-quickstart && cd ls-quickstart
python -m venv .venv && source .venv/bin/activate
pip install -U langsmith google-genai

mkdir ls-quickstart-ts && cd ls-quickstart-ts
npm init -y
npm install langsmith @google/genai
npm install -D typescript tsx

Export your environment variables in your shell:
- OpenAI
- Anthropic
- Gemini
export LANGSMITH_TRACING=true export LANGSMITH_API_KEY="<your-langsmith-api-key>" export OPENAI_API_KEY="<your-openai-api-key>"
export LANGSMITH_TRACING=true export LANGSMITH_API_KEY="<your-langsmith-api-key>" export ANTHROPIC_API_KEY="<your-anthropic-api-key>"
export LANGSMITH_TRACING=true export LANGSMITH_API_KEY="<your-langsmith-api-key>" export GEMINI_API_KEY="<your-gemini-api-key>"
Before sending traces, create the agent in LangSmith:
1. In an agent-based workspace, open + Agent, choose Observability, and create an agent with an Agent name and Agent ID. This requires the projects:create permission. If the agent already exists, reuse it.
2. Copy the Agent ID and choose an environment: local, development, staging, or production.
3. Configure agent addressing before running the agent:
  export LANGSMITH_AGENT_ID="<your-agent-id>" export LANGSMITH_AGENT_ENVIRONMENT="local"
Register the agent once, not for every trace. Remove LANGSMITH_PROJECT, LANGCHAIN_PROJECT, and LANGCHAIN_SESSION from the environment where your code runs. Do not combine legacy destination settings with agent addressing. To create the agent with an SDK call or API request, see Create an agent programmatically.
Project-based workspaces and self-hosted LangSmith
Agent addressing is available in agent-based workspaces on LangSmith Cloud. In a project-based workspace, including self-hosted LangSmith, set LANGSMITH_PROJECT to your tracing project name instead of setting the two agent variables.

If your account is in a region other than US (the default), also set LANGSMITH_ENDPOINT to the API URL for your region. Without this, your API key won’t be recognized and requests will fail to authenticate.
Region
GCP US
GCP EU
GCP APAC
AWS US
For example, EU accounts: export LANGSMITH_ENDPOINT="https://eu.api.smith.langchain.com".
For other providers, use the @traceable decorator to trace calls manually.

Region
GCP US
GCP EU
GCP APAC
AWS US

2. Build the app

The following app uses two LangSmith tools to add tracing:

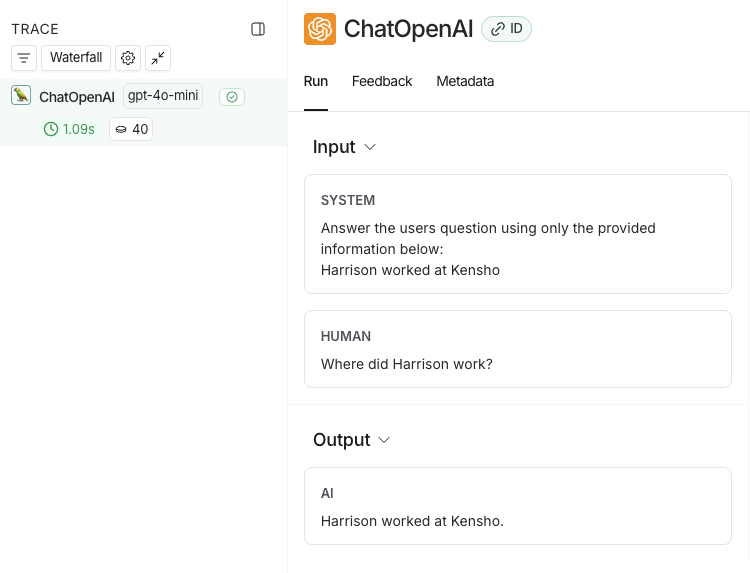

Provider wrapper: wraps the OpenAI, Anthropic, or Gemini client so every LLM call is automatically logged as a nested span. The Gemini wrapper is in beta.

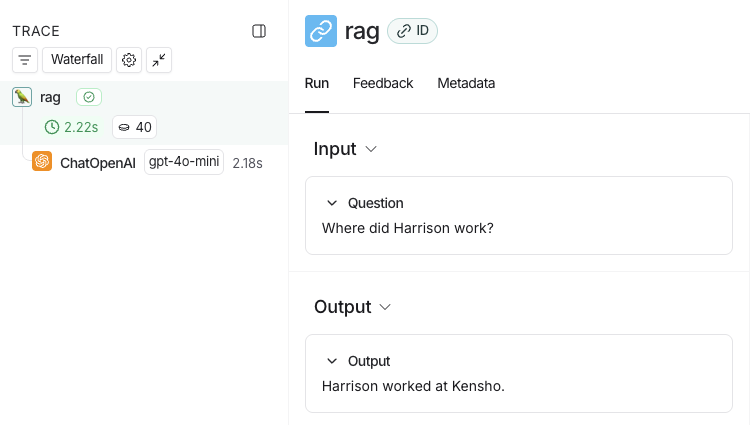

Traceable wrapper: wraps a function so its inputs, outputs, and any nested spans appear as a single trace in LangSmith. Use @traceable in Python, traceable in TypeScript and Kotlin, and Tracing.traceFunction in Java.

The assistant function calls a tool (get_context) to retrieve relevant context, then passes that context to the model. Using the traceable wrapper on both functions captures the full pipeline in one trace, with the tool call and LLM call as nested spans. Create a file called app.py, index.ts, App.java, or App.kt with the following code:

OpenAI
Anthropic
Gemini

from openai import OpenAI
from langsmith.wrappers import wrap_openai
from langsmith import traceable

client = wrap_openai(OpenAI())  # log every OpenAI call automatically

@traceable(run_type="tool")  # trace this as a tool span
def get_context(question: str) -> str:
    # In a real app, this would query a knowledge base or vector store
    return "LangSmith traces are stored for 14 days on the Developer plan."

@traceable  # capture the full pipeline as a single trace
def assistant(question: str) -> str:
    context = get_context(question)
    response = client.chat.completions.create(
        model="gpt-6-luna",
        messages=[
            {
                "role": "system",
                "content": f"Answer using the context below.\n\nContext: {context}",
            },
            {"role": "user", "content": question},
        ],
    )
    return response.choices[0].message.content

if __name__ == "__main__":
    print(assistant("How long are LangSmith traces stored?"))

import OpenAI from "openai";
import { wrapOpenAI } from "langsmith/wrappers";
import { traceable } from "langsmith/traceable";

const client = wrapOpenAI(new OpenAI()); // log every OpenAI call automatically

const getContext = traceable(
    async function getContext(question: string): Promise<string> { // trace this as a tool span
        // In a real app, this would query a knowledge base or vector store
        return "LangSmith traces are stored for 14 days on the Developer plan.";
    },
    { run_type: "tool" }
);

const assistant = traceable(async function assistant(question: string) { // capture the full pipeline as a single trace
    const context = await getContext(question);
    const response = await client.chat.completions.create({
        model: "gpt-6-luna",
        messages: [
            {
                role: "system",
                content: `Answer using the context below.\n\nContext: ${context}`,
            },
            { role: "user", content: question },
        ],
    });
    return response.choices[0]?.message?.content ?? null;
});

(async () => {
    console.log(await assistant("How long are LangSmith traces stored?"));
})();

import com.langchain.smith.tracing.RunType;
import com.langchain.smith.tracing.TraceConfig;
import com.langchain.smith.tracing.Tracing;
import com.langchain.smith.wrappers.openai.OpenAITracing;
import com.openai.client.OpenAIClient;
import com.openai.client.okhttp.OpenAIOkHttpClient;
import com.openai.models.ChatModel;
import com.openai.models.chat.completions.ChatCompletion;
import com.openai.models.chat.completions.ChatCompletionCreateParams;
import com.openai.models.chat.completions.ChatCompletionMessageParam;
import com.openai.models.chat.completions.ChatCompletionSystemMessageParam;
import com.openai.models.chat.completions.ChatCompletionUserMessageParam;
import java.util.function.Function;

class ObservabilityQuickstartApp {
  public static void main(String[] args) {
    new ObservabilityQuickstartRunner().run();
  }

  private static final class ObservabilityQuickstartRunner {
    private final OpenAIClient client =
        OpenAITracing.wrapOpenAI(OpenAIOkHttpClient.fromEnv());

    private final Function<String, String> getContext =
        Tracing.traceFunction(
            question -> "LangSmith traces are stored for 14 days on the Developer plan.",
            TraceConfig.builder().name("get_context").runType(RunType.TOOL).build());

    private final Function<String, String> assistant =
        Tracing.traceFunction(
            question -> {
              String context = getContext.apply(question);
              ChatCompletion response =
                  client.chat()
                      .completions()
                      .create(
                          ChatCompletionCreateParams.builder()
                              .model(ChatModel.GPT_5_5)
                              .addMessage(
                                  ChatCompletionMessageParam.ofSystem(
                                      ChatCompletionSystemMessageParam.builder()
                                          .content(
                                              "Answer using the context below.\n\nContext: " + context)
                                          .build()))
                              .addMessage(
                                  ChatCompletionMessageParam.ofUser(
                                      ChatCompletionUserMessageParam.builder()
                                          .content(question)
                                          .build()))
                              .build());
              return response.choices().get(0).message().content().orElse("");
            },
            TraceConfig.builder().name("assistant").build());

    void run() {
      System.out.println(assistant.apply("How long are LangSmith traces stored?"));
    }
  }
}

import com.langchain.smith.tracing.RunType
import com.langchain.smith.tracing.TraceConfig
import com.langchain.smith.tracing.traceable
import com.langchain.smith.wrappers.openai.wrapOpenAI
import com.openai.client.okhttp.OpenAIOkHttpClient
import com.openai.models.ChatModel
import com.openai.models.chat.completions.ChatCompletionCreateParams
import com.openai.models.chat.completions.ChatCompletionMessageParam
import com.openai.models.chat.completions.ChatCompletionSystemMessageParam
import com.openai.models.chat.completions.ChatCompletionUserMessageParam
import kotlin.jvm.optionals.getOrNull

val client = wrapOpenAI(OpenAIOkHttpClient.fromEnv())

val getContext =
    traceable(
        { _: String -> "LangSmith traces are stored for 14 days on the Developer plan." },
        TraceConfig.builder().name("get_context").runType(RunType.TOOL).build(),
    )

val assistant =
    traceable(
        { question: String ->
            val context = getContext(question)
            val response =
                client.chat().completions().create(
                    ChatCompletionCreateParams.builder()
                        .model(ChatModel.GPT_5_5)
                        .addMessage(
                            ChatCompletionMessageParam.ofSystem(
                                ChatCompletionSystemMessageParam.builder()
                                    .content("Answer using the context below.\n\nContext: $context")
                                    .build(),
                            ),
                        )
                        .addMessage(
                            ChatCompletionMessageParam.ofUser(
                                ChatCompletionUserMessageParam.builder()
                                    .content(question)
                                    .build(),
                            ),
                        )
                        .build(),
                )
            response.choices()[0].message().content().getOrNull().orEmpty()
        },
        TraceConfig.builder().name("assistant").build(),
    )

println(assistant("How long are LangSmith traces stored?"))

from anthropic import Anthropic
from langsmith.wrappers import wrap_anthropic
from langsmith import traceable

client = wrap_anthropic(Anthropic())  # log every Anthropic call automatically

@traceable(run_type="tool")  # trace this as a tool span
def get_context(question: str) -> str:
    # In a real app, this would query a knowledge base or vector store
    return "LangSmith traces are stored for 14 days on the Developer plan."

@traceable  # capture the full pipeline as a single trace
def assistant(question: str) -> str:
    context = get_context(question)
    response = client.messages.create(
        model="claude-sonnet-5-5",
        max_tokens=1024,
        system=f"Answer using the context below.\n\nContext: {context}",
        messages=[{"role": "user", "content": question}],
    )
    return "".join(block.text for block in response.content if block.type == "text")

if __name__ == "__main__":
    print(assistant("How long are LangSmith traces stored?"))

import Anthropic from "@anthropic-ai/sdk";
import { wrapAnthropic } from "langsmith/wrappers/anthropic";
import { traceable } from "langsmith/traceable";

const client = wrapAnthropic(new Anthropic()); // log every Anthropic call automatically

const getContext = traceable(
    async function getContext(question: string): Promise<string> { // trace this as a tool span
        // In a real app, this would query a knowledge base or vector store
        return "LangSmith traces are stored for 14 days on the Developer plan.";
    },
    { run_type: "tool" }
);

const assistant = traceable(async function assistant(question: string) { // capture the full pipeline as a single trace
    const context = await getContext(question);
    const response = await client.messages.create({
        model: "claude-sonnet-5-5",
        max_tokens: 1024,
        system: `Answer using the context below.\n\nContext: ${context}`,
        messages: [{ role: "user", content: question }],
    });
    const block = response.content[0];
    return block?.type === "text" ? block.text : null;
});

(async () => {
    console.log(await assistant("How long are LangSmith traces stored?"));
})();

from google import genai
from langsmith.wrappers import wrap_gemini
from langsmith import traceable

client = wrap_gemini(genai.Client())  # log every Gemini call automatically

@traceable(run_type="tool")  # trace this as a tool span
def get_context(question: str) -> str:
    # In a real app, this would query a knowledge base or vector store
    return "LangSmith traces are stored for 14 days on the Developer plan."

@traceable  # capture the full pipeline as a single trace
def assistant(question: str) -> str:
    context = get_context(question)
    response = client.models.generate_content(
        model="gemini-4-hydrogen",
        contents=question,
        config={"system_instruction": f"Answer using the context below.\n\nContext: {context}"},
    )
    return response.text

if __name__ == "__main__":
    print(assistant("How long are LangSmith traces stored?"))

import { GoogleGenAI } from "@google/genai";
import { wrapGemini } from "langsmith/wrappers/gemini";
import { traceable } from "langsmith/traceable";

const client = wrapGemini(new GoogleGenAI({ apiKey: process.env.GEMINI_API_KEY })); // log every Gemini call automatically

const getContext = traceable(
    async function getContext(question: string): Promise<string> { // trace this as a tool span
        // In a real app, this would query a knowledge base or vector store
        return "LangSmith traces are stored for 14 days on the Developer plan.";
    },
    { run_type: "tool" }
);

const assistant = traceable(async function assistant(question: string) { // capture the full pipeline as a single trace
    const context = await getContext(question);
    const response = await client.models.generateContent({
        model: "gemini-4-hydrogen",
        contents: question,
        config: { systemInstruction: `Answer using the context below.\n\nContext: ${context}` },
    });
    return response.text ?? null;
});

(async () => {
    console.log(await assistant("How long are LangSmith traces stored?"));
})();

3. Run the app

python app.py

npx tsx index.ts

./gradlew run

4. View your trace

In the LangSmith UI, select your agent, go to Tracing, and select the environment configured during setup. In a project-based workspace, open the project named by LANGSMITH_PROJECT. For more information, see Navigate agents. Click the assistant row to open the trace. The Trajectory tab shows the conversation as it was sent to the model. Select the Details tab to see the full run tree, including the assistant function with the get_context tool call and the model call nested inside it.

LangSmith UI showing a trace with an outer agent span and a nested LLM call span.

The outer span captures your assistant function’s inputs and outputs. The nested get_context span (getContext in TypeScript) records the tool call, and the model span (ChatOpenAI, ChatAnthropic, or ChatGoogleGenerativeAI) records the exact prompt sent to the model and the response returned.

You can also inspect traces from the terminal using the LangSmith CLI.

Next steps

Tracing integrations: LangChain, LangGraph, Anthropic, and other providers.
Trace an agent: a full lifecycle tutorial, from prototyping through production.
Filter traces: search the traces in an agent environment.
Log traces to an agent: configure the agent and environment in code or with environment variables.
Agent Registry: how workspaces organize agents and their environments.

After logging traces, use Chat to analyze them and get AI-powered insights into your agent’s performance.

Connect these docs to your agent of choice via MCP for real-time answers.

Edit this page on GitHub or file an issue.

Tracing setup

Configuration & troubleshooting

Prerequisites

1. Set up your environment

2. Build the app

3. Run the app

4. View your trace

Next steps
